LT and PFI panels

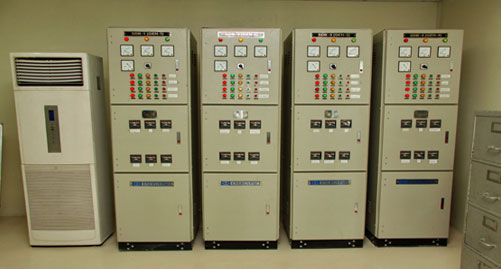

Low Tension (LT) Panel: Energypac Engineering Limited manufactures low voltage switchgear (hereafter called LT Panel) which is applied for power control and distribution systems of AC 50Hz, rated working voltage up to 440V. It's mainly used in power station, industrial enterprise, Commercial/Residential Buildings for power distribution and can be used to control, protect and inspect the circuit.

The design meets with the standard of IEC439;GB7251. Frame, which consists of zincification steel plate by "C" shaped steel by means of steel rivets and accusing screw. The dimension inside of cabinet and separation cubicles is modular and carried out exchanged of the same unit in specification. Low voltage can endure the discharging; heat and mechanism stress caused by short circuit fault, but also prevent the let and position of press release caused by gas to operator. Switchgear is divided into main busbar compartment, branch busbar compartment, functional units compartment, cable compartment and insulation design of each unit, which can deduct the destroy to lowest degree caused by arc. Frame is without any welding corner, which assured the assemble precision while used of special tools during assembling. Each functional unit is assembled with door (Plate), which are with gemel and lock. The door with facility is not droop caused by weight or size. Each functional compartment is of pressure-releasing avenue. The gas giving out at fault can be released though the avenue. The enclosure can be designed as or "Upper incoming and outgoing"; "upper incoming down outgoing"; "down incoming and outgoing" for the cable or busbar. The dimension of low voltage is: 400mm*1000mm*2200mm (W*H*D) which can be customized at customer's requirement. The enclosure after processing and mounting is orderliness, propitious and Beauty.

The door, shrouding and frame will be coated with epoxy resin power and not exceed the 50micron prior to acid washing, phosphate, anti-rust paint. After that the enclosure will be of strong anti-corrosive capacity. The color is recommended by us or upon request by customer. The busbar system meets with the requirement of ZBK36001-89, IEC439, IEC694. All the busbar in the cubicle is enclosed in the sub-compartment in the switchgear. The selection of material of busbar is electrolytic copper with high conductance according to the standard of IEC431. The color of phase and order of arrangement are meet with the requirement of IEC439 and GB7251. The fixing bolts of the busbar are of high intensity to make the installation be convenient and flexible and the busbar will be very firm. There are isolated PE earthing system and N neutral conductor which are passing through the device. Section cross of wires: current return circuit=2.5mm2, voltage return circuit=1.5mm2.

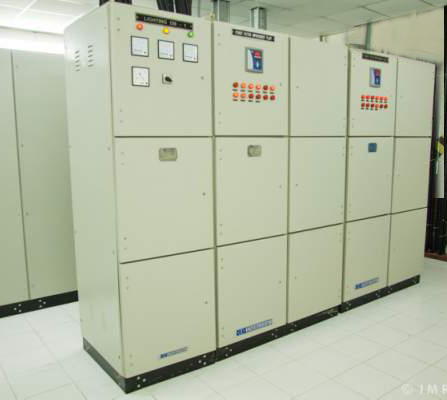

PFI (Power Factor Improvement) Plant: Power Factor of the system is degraded due to inductive load of different industries and big apartments. Energypac manufacture PFI (Power Factor Improvement) Plant for improving the degraded Power Factor of the system. We have microprocessor based PFC (Power Factor Correction) relay up to 16 stages. The Capacitors we use are of different ratings (2.5, 5, 10, 20, 25, 50 KVAR.... etc) and corresponding Magnetic Contactor for suitable stepping of the Capacitor bank. Sometimes we also use detuned Reactor with the Capacitors for harmonic filtration of the system. The standard panel size is 600x600x1700 mm (single unit) and the weight is around 200 kg.
