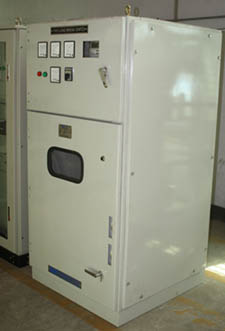

Indoor Type Load Break Switch
This protective equipment is used at 11 kV sub-station. The main Load Break Switch (LBS) mechanism is available for 630A & the over current protection scheme is done through HRC fuse. The panel includes 3 numbers of CT (Current Transformer) & 2/3 numbers of PT (Potential Transformer) for measuring system current & voltage respectively & 3 numbers of HRC Fuses for protection of overload. The scheme is so designed that if fault occurs in any phase it will isolate the whole three phases from the system instantly. The panel also includes 3 numbers of Ampere meters & one number of Voltmeter with selector switch for monitoring system current & voltage. The standard panel size is 900x900x1800 mm & weight is around 450 kg.
